Figures and groups

Still Quarto’s presentation

Quarto keeps its native columns, figures and captions. The optional .askr-grid and .askr-figure-fit wrappers address specific layout needs while leaving content in the article.

Columns

The left column is half of the content measure.

The right column is the other half. Standard Quarto columns retain Quarto’s responsive behavior; use .askr-grid for a pair that stays two columns from 768px and stacks below that width.

Responsive groups

Use .askr-grid around two callouts or cards to create equal columns at viewport widths of at least 768px and one column below that. Source order is also reading order.

Prepare the source

Keep the first item concise and useful on its own.

Check the result

The second item follows the first in both layout and reading order.

Read about cards

Cards keep their ordinary heading links.

Read about callouts

Callouts keep their native Quarto semantics.

Tabset

These two groups stay in step. Choosing Palace or AEDT in one group selects it in the other. The article underneath does not sit in a second card.

Palace uses the shared layout and its own electrostatic input.

AEDT Q3D uses the same layout and its own input binding.

The eigenmode result is read from the Palace run.

The eigenmode result is read from the HFSS run.

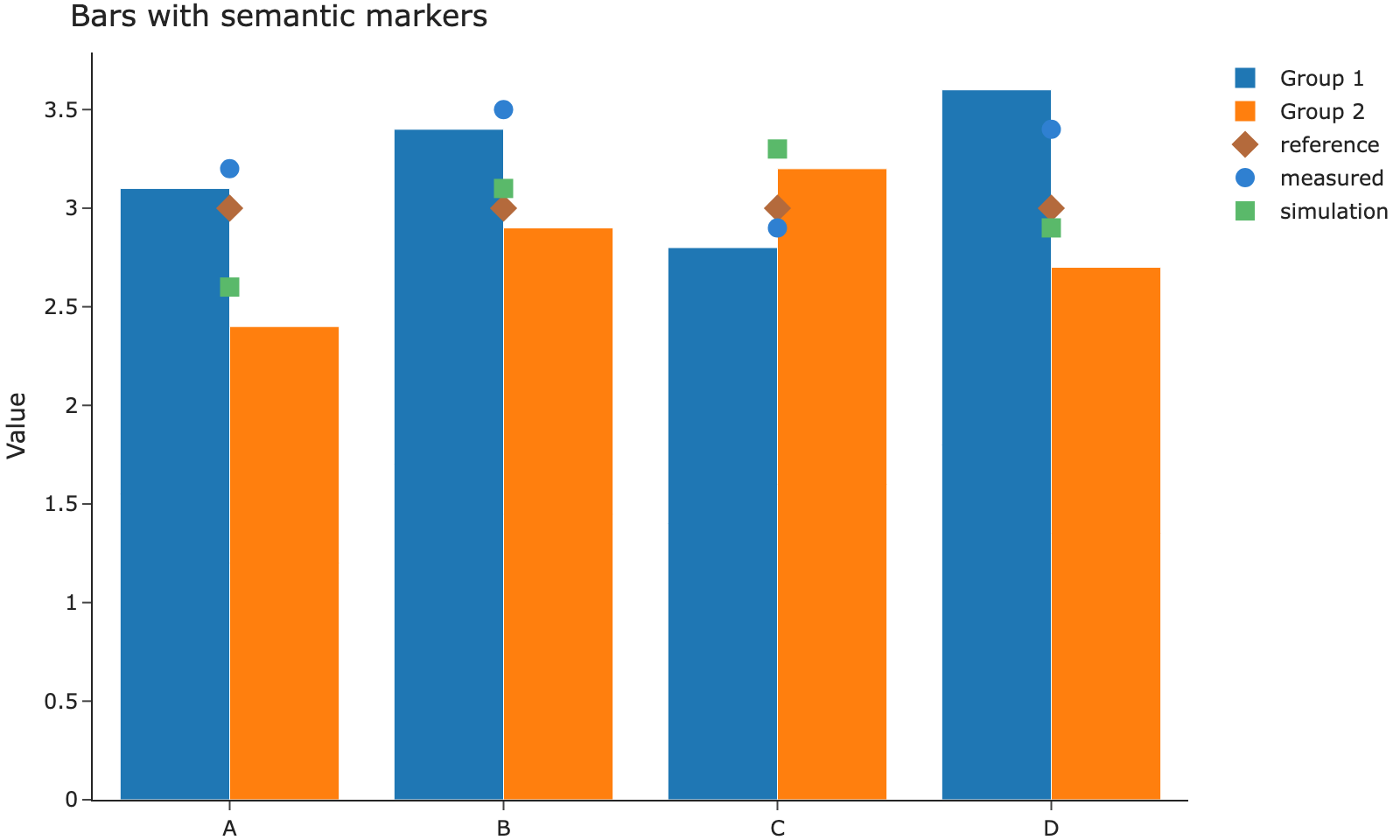

Images in this document come from Embla. The chart below is its bars-and-markers figure, saved here as a static image. Quarto’s folded cell keeps the embed source behind Source and shows the image underneath.

Source

from IPython.display import Image
Image("images/bars-semantic-markers.png")

A page that only needs the picture, without a source disclosure, embeds it directly:

![Bars with semantic markers](images/bars-semantic-markers.png)

Fit a tall figure to the viewport

Opt in with .askr-figure-fit when a tall image should fit within 70svh (70vh fallback) while keeping its aspect ratio. Ordinary figure behavior is unchanged. The native caption remains below the image, and the existing Askr Image Viewer continues to handle image inspection.

Tall flow diagram showing source, rendering and reading — Figure 1: A tall public documentation flow showing how one authored source becomes a rendered page that a reader can follow, from top to bottom.

Image viewer

The dedicated Image viewer page demonstrates static images, inline inspection, floating views and galleries. For a chart with its own interactive controls, see Chart viewer.

Theme toggle

Quarto keeps two outputs from one cell and shows one of them. body.quarto-dark hides .light-content; body.quarto-light hides .dark-content. Askr’s dark stylesheet is marked data-mode="dark", so the header toggle adds and removes quarto-dark with the stylesheet.

Emit the light output first, then the dark output:

Source

from IPython.display import HTML, display

def swatch(background, foreground, label):
    display(HTML(
        f'<p style="margin:0;padding:1rem 1.25rem;background:{background};color:{foreground}">{label}</p>'
    ))

swatch("#faf8f8", "#2b2b2b", "Light rendering")
swatch("#161618", "#ebebec", "Dark rendering")

Light rendering

Dark rendering

The same order works for a Plotly figure: draw the light figure, then the dark figure, under #| renderings: [light, dark]. The figure colors are baked into each output. The toggle does not recolor a single picture.

Diagram

This simple, unwrapped Mermaid block stays native in the article and does not add viewer controls:

flowchart LR
  Areas[Areas] --> Pages[Page List]
  Pages --> Article[Article]
  Article --> Sections[Section List]

flowchart LR
  Areas[Areas] --> Pages[Page List]
  Pages --> Article[Article]
  Article --> Sections[Section List]

Mermaid also supports a conditional edge label on a branch. This example uses the existing diagram viewer wrapper:

flowchart TD
  Start[Start] --> Check{Ready?}
  Check -->|Yes| Done[Continue]
  Check -->|No| Wait[Prepare inputs]

flowchart TD
  Start[Start] --> Check{Ready?}
  Check -->|Yes| Done[Continue]
  Check -->|No| Wait[Prepare inputs]

This gallery does not ship a photograph.

Mermaid viewer

Wrap exactly one native Mermaid block in .askr-mermaid-view to add a View diagram button below the rendered graph. The graph remains in the article; the button opens its floating viewer. The wide flow below keeps its natural width in a keyboard-focusable horizontal scroll region.

flowchart LR
  subgraph author["Authoring"]
    direction TB
    source["Write one native<br/>Mermaid block"] --> wrapper["Add the optional<br/>viewer wrapper"]
  end
  subgraph build["Build and publish"]
    direction TB
    render["Quarto renders<br/>the HTML page"] --> publish["Publish the<br/>documentation"]
  end
  subgraph reader["Reading"]
    direction TB
    article["Diagram appears<br/>in the article"] --> open["Choose View diagram"] --> inspect["Zoom, pan or Fit<br/>in the floating viewer"] --> close["Close and return<br/>to the article"]
  end
  wrapper --> render
  publish --> article

flowchart LR
  subgraph author["Authoring"]
    direction TB
    source["Write one native<br/>Mermaid block"] --> wrapper["Add the optional<br/>viewer wrapper"]
  end
  subgraph build["Build and publish"]
    direction TB
    render["Quarto renders<br/>the HTML page"] --> publish["Publish the<br/>documentation"]
  end
  subgraph reader["Reading"]
    direction TB
    article["Diagram appears<br/>in the article"] --> open["Choose View diagram"] --> inspect["Zoom, pan or Fit<br/>in the floating viewer"] --> close["Close and return<br/>to the article"]
  end
  wrapper --> render
  publish --> article

Use View diagram to open the rendered graph in the floating viewer. The adjacent Mermaid source disclosure below the graph expands the authored block on demand; its Copy button copies the source. See the Mermaid viewer guide for controls and limits.

Limits

Standard columns, the opt-in .askr-grid, tabset and simple diagram fit the article width. The wider flow uses .askr-wide-figure to keep its natural size and scroll horizontally. A floating viewer can zoom, but does not replace readable labels or logical grouping. Redraw a diagram if its labels or relationships remain hard to follow; do not shrink its text to force a poster into a column.
